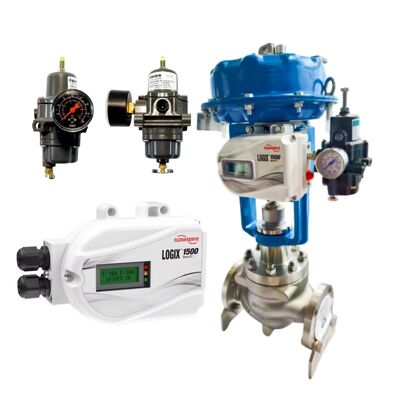

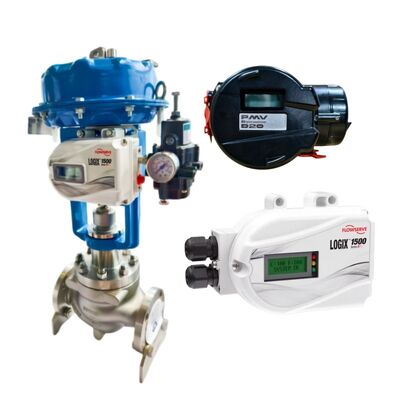

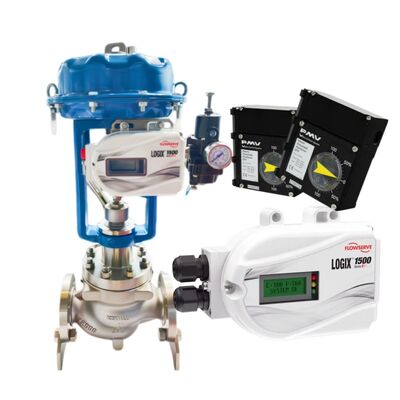

Flowserve Logix 1500 Digital Valve Positioner with HART 7 Communication IP66 NEMA 4X Protection and 4–20 mA DC Input Signal

1
MOQ
US $1785.00 - 2300.00/ Set
fiyat
Flowserve Logix 1500 Digital Valve Positioner with HART 7 Communication IP66 NEMA 4X Protection and 4–20 mA DC Input Signal
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Puanlar ve İncelemeler Fiyat talebi
Özellikleri
Teknik Özellikler
Giriş sinyali: 4–20mADC
İletişim: HART 7 (İsteğe bağlı)
Hava Besleme Basıncı: 60 psi'ye (4,1 bar) kadar
Çalışma Sıcaklığı: -40°C ila +85°C
Koruma Sınıfı: IP66 / NEMA 4x
Vana Tipi: Tek Etkili Lineer ve Döner Valfler
Vurgulamak:

Flowserve Logix 1500 valve positioner

,

Fisher 67DFR filter regulator

,

industrial pneumatic control valve
Temel bilgiler
Marka adı: Flowserve
Model numarası: Logix 1500
Ödeme & teslimat koşulları
Ambalaj bilgileri: 2-7gün
Teslim süresi: 6~8 hafta
Ödeme koşulları: T/T
Yetenek temini: Yılda 1500 Takım
Ürün Açıklaması

Product Overview

The Flowserve Logix 1500 digital positioner provides accurate pneumatic valve control using HART protocol. It features reliable piezo technology and simple local operation, making it suitable for standard process applications that require a balance of performance and affordability.

Technical Specifications

Parameter Specification
Input Signal 4–20 mA DC + HART
Supply Air Pressure 2–10 bar
Air Consumption Low
Linearity < ±1.0% FS
Repeatability < 0.2% FS
Operating Temperature –40 °C to +80 °C
Enclosure NEMA 4X / IP66
Housing Aluminum

Application Industry

  • Chemical and petrochemical
  • Power utilities
  • Oil & gas
  • General manufacturing
  • Industrial valve control

Common Problems & Solutions

  • Problem: Air quality affecting performance → Solution: Recommended clean, dry air supply
  • Problem: Setup complexity → Solution: Local calibration interface
  • Problem: Environmental exposure → Solution: Robust enclosure design

Replacement Models

  • Previous generation Logix positioners
  • Higher series models for advanced diagnostics

Why Buy From Us

  • Authentic Flowserve product
  • Good value and technical support
  • Help with calibration and tuning
  • Spare parts availability

Stock & Delivery Time

  • Common models: 6–10 weeks
  • Configured versions: 8–14 weeks

RFQ Form

  1. Valve and actuator details
  2. Supply air pressure
  3. Area classification
  4. Quantity & delivery timeline
