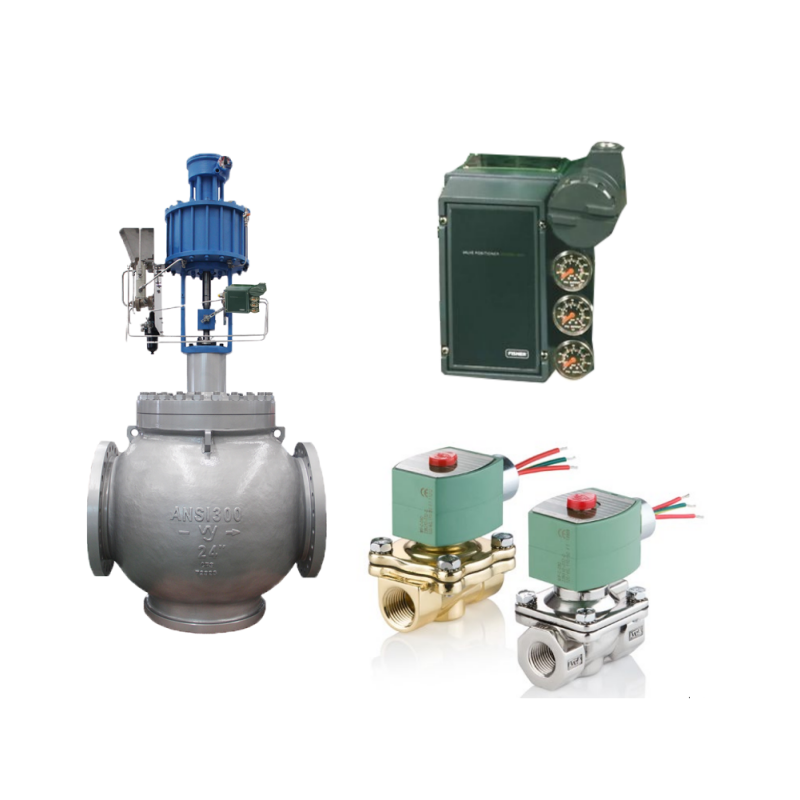

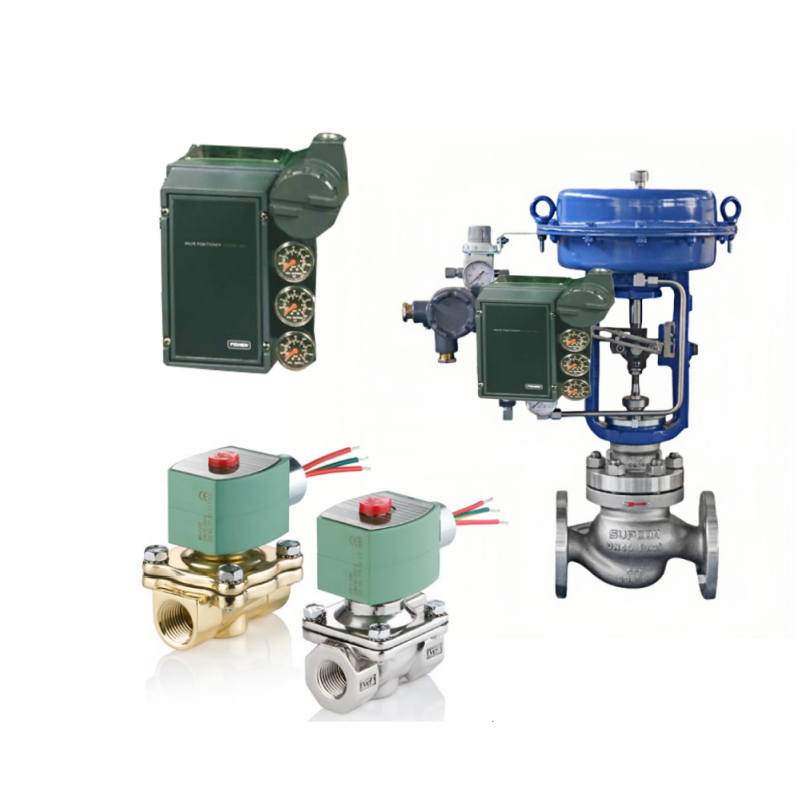

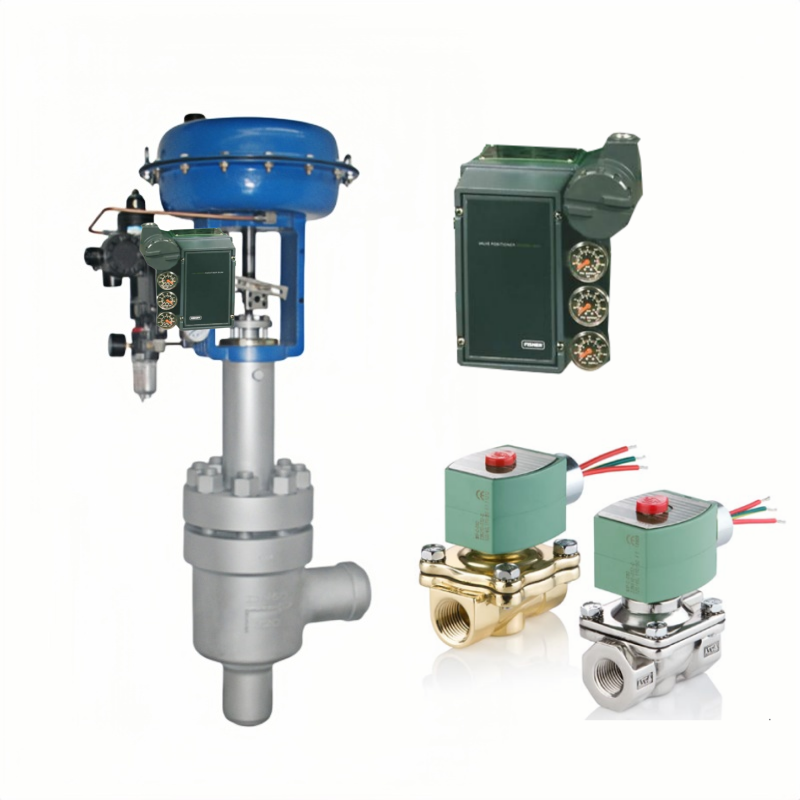

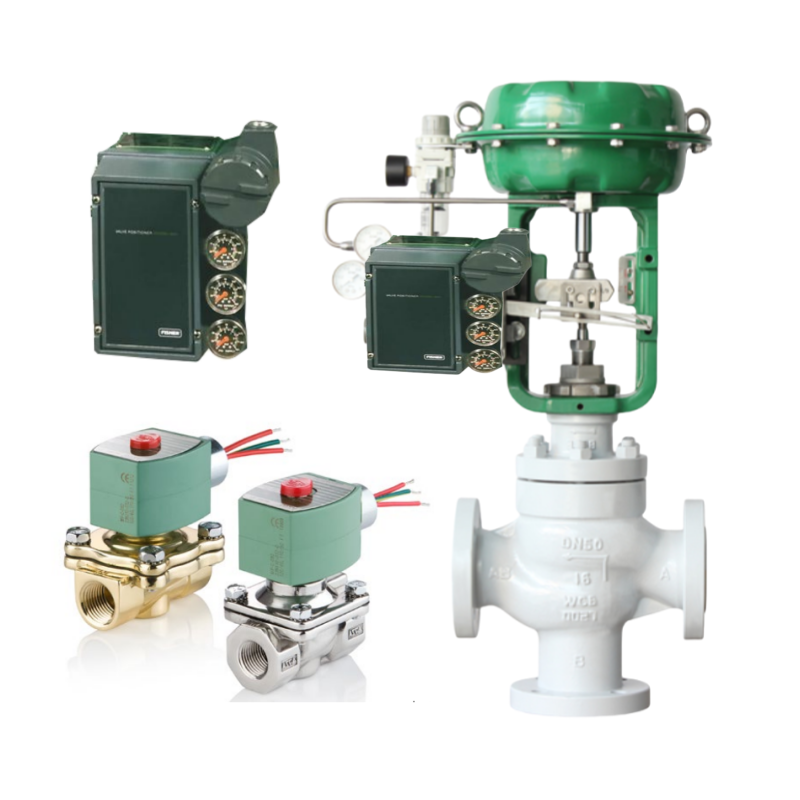

Emerson Fisher 3600 Series 3620J Electro Pneumatic Valve Positioner with ASCO Solenoid Valves

1
MOQ
1850 dollars
fiyat
Emerson Fisher 3600 Series 3620J Electro Pneumatic Valve Positioner with ASCO Solenoid Valves
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Puanlar ve İncelemeler Fiyat talebi
Özellikleri
Teknik Özellikler
İletişim Protokolü: 4-20mA Analog
Veri Arayüzü: kablolu
Teşhis: HAYIR
Giriş sinyali: Elektrik
Maksimum çıkış basıncı: 150 PSI
Montaj Tipi: Aktüatöre Monte Edilmiş
Temel bilgiler
Menşe yeri: Çin
Marka adı: Fisher
Model numarası: 3620J
Belge: instruction-manual-fisher-3...74.pdf
Ödeme & teslimat koşulları
Ambalaj bilgileri: Karton + ahşap sandık + koruyucu ambalaj
Teslim süresi: 60 gün
Ödeme koşulları: T/T
Yetenek temini: Yılda 500 adet
Ürün Açıklaması
Product Overview

The Fisher 3620J is a single-acting electro-pneumatic rotary valve positioner engineered for quick field installation and straightforward maintenance. It transforms a standard 4–20 mA signal into precise pneumatic control for Fisher 1051/1052/2052 actuators, making it the ideal upgrade path from pneumatic to electro-pneumatic operation using the integrated 3622 converter.

Key Features
  • One-piece mounting on actuator housing with cam roller ready in minutes
  • Tool-free cover removal for fast zero/span and minor loop gain adjustments
  • Built-in bypass valve option and diagnostic connection ports
  • Reversible action via simple reversing-plate adjustment
  • Robust IP54/IP64 enclosure with vent protection
  • Low air consumption reduces operating costs
Technical Specifications
Parameter Specification
Input Signal 4–20 mA DC constant current, split-range capable
Supply / Output Connections 1/4 NPT internal
Maximum Supply Pressure 10.3 bar (150 psig) or actuator limit
Steady-State Air Consumption 0.49 normal m³/h (18.2 scfh) @ 1.4 bar
Temperature Range –40 to 82 °C
Independent Linearity ±1.5% (direct), ±0.75% (reverse)
Hysteresis / Deadband 0.75% / 0.1% of span
Hazardous Area Approvals CSA, FM, ATEX, IECEx Intrinsically Safe & Explosion-proof
Weight 3.6 kg (8.0 lb)
Applications

Perfect for retrofits on existing rotary valves, plant expansions, or any installation where fast commissioning and minimal downtime are critical.

Frequently Asked Questions
Q: Do I need special tools to mount the 3620J?
A: No — only standard socket-head screws and a screwdriver are required.
Q: How do I change cams for different rotations?
A: Remove actuator cover plate, swap cam A/B/C, and realign indicator if needed.
Q: Is the positioner suitable for outdoor weather exposure?
A: Yes — mount vent on side or bottom for added weatherproofing.
