Ana sayfa /Ürünler/Pnömatik Kontrol Valfları/4-20mA Power Supply Masoneilan SVI3 Compatible Smart Digital Control Valve Positioner and 4700E Electro Pneumatic Positioner and 4000 I/P Converter

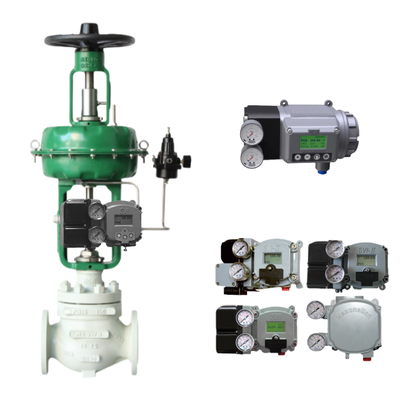

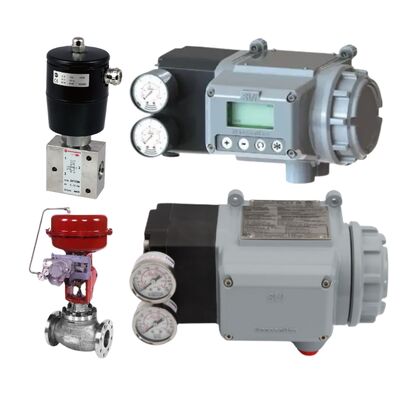

4-20mA Power Supply Masoneilan SVI3 Compatible Smart Digital Control Valve Positioner and 4700E Electro Pneumatic Positioner and 4000 I/P Converter

1
MOQ
US $1900.00 - 2100.00/ Unit
fiyat
4-20mA Power Supply Masoneilan SVI3 Compatible Smart Digital Control Valve Positioner and 4700E Electro Pneumatic Positioner and 4000 I/P Converter
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Puanlar ve İncelemeler Fiyat talebi
Özellikleri
Teknik Özellikler
Pnömatik: Hava veya tatlı doğal gaz
Güç kaynağı: 4-20mA
Bağlantılar (Tedarik ve Aktüatör): 1/2 "npt
Kesinlik: ± yüzde 0,5 tam aralık
Vana Tipi: kontrol vanası
Temel bilgiler
Menşe yeri: Hindistan
Marka adı: Masoneilan
Model numarası: SVI3
Ödeme & teslimat koşulları
Ambalaj bilgileri: Karton + ahşap kutu + koruma
Teslim süresi: C4-Kuru meyve torbası
Ödeme koşulları: T/T
Yetenek temini: Yılda 1000 adet
Ürün Açıklaması
Masoneilan SVI3 Valve Controllers Customized Pneumatic Control Digital Smart HART Valve Positioner Stock
Product Attributes
Attribute Value
Pneumatics Air or Sweet Natural Gas
Power Supply 4-20mA
Connections (Supply and Actuator) 1/2" NPT
Accuracy ± 0.5 percent Full Span
Valve type Control Valve
Product Overview

The Masoneilan SVI2 is a next-generation digital valve positioner designed for precise pneumatic control in industrial automation. As part of the advanced SVI II series, this device combines HART protocol communication with customizable features to optimize valve performance. Ideal for both retrofitting existing systems and new installations, it supports single/double-acting actuators and offers stock availability for urgent requirements.

Technical Parameters
Parameter Details
Model SVI3-AP Series
Input Signal 4-20mA (HART 5/7 compatible)
Communication HART® eDDL/FDT-DTM
Accuracy ±0.5% span
Response Time <500ms
Working Temperature -40°C to +85°C
Protection IP66/IP67, NEMA 4X
Certification ATEX, FM, IECEx, CSA
Supply Pressure 20-150 psi (1.4-10.3 bar)
Air Consumption 0.1 SCFM (steady-state)
Installation Direct/bracket mount
Housing Material Aluminum (optional stainless)
Key Features
  • HART 7 Compatibility: Bidirectional digital communication for remote configuration
  • Custom Pneumatic Control: Adaptive PID tuning for single/double-acting actuators
  • Auto-Calibration: One-touch AutoTune function for rapid commissioning
  • Non-Contact Sensor: Magnetic position detection for maintenance-free operation
  • Explosion-Proof Design: ATEX/IECEx certified for hazardous environments
  • Low Air Consumption: Energy-efficient design reduces operational costs
  • Multi-Language Display: Local LCD with push-button interface (optional)
Applications
Oil & Gas: Refinery distillation and pipeline ESD systems Power Generation: Steam turbine bypass and boiler feedwater control Chemical Plants: Reactor pressure regulation and batch processing Water Treatment: Municipal water supply and wastewater treatment Pharmaceutical: Sterile environment valve automation Marine: Shipboard HVAC and cargo handling systems
