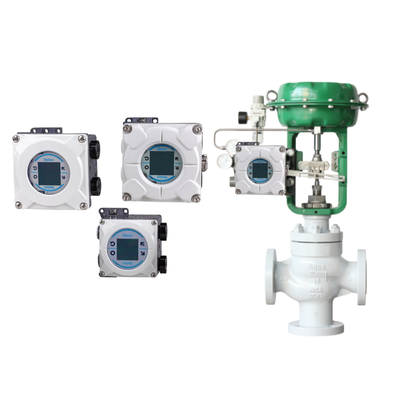

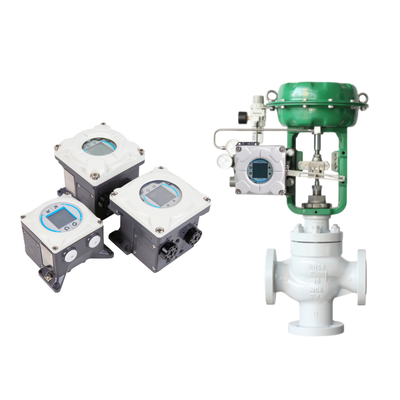

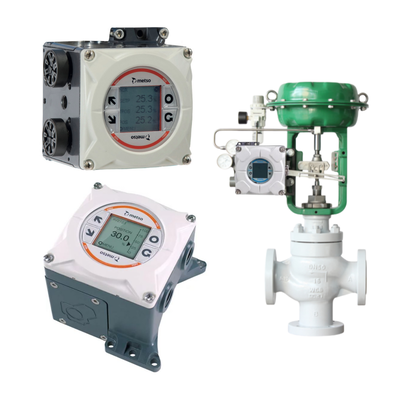

Shanghai Lanlin Pneumatic Three Way Control Valve with Valmet Me-tso Neles NDX Smart Valve Controller

1
MOQ
1800 dollars
fiyat
Shanghai Lanlin Pneumatic Three Way Control Valve with Valmet Me-tso Neles NDX Smart Valve Controller
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Puanlar ve İncelemeler Fiyat talebi
Özellikleri
Teknik Özellikler
Standart sıcaklık aralığı: -40° ila +85 °C / -40° ila +185 °F
Sıcaklık döngüsü/Kuru ısı: IEC 60068-2-2
Nem Limitleri: IEC 60068-2-30'a göre
Aksiyon: Tek etkili, doğrudan veya ters
Seyahat Menzili: Doğrusal; 5...120 mm / 0,2...4,7 inç Döner; 30...160 derece.
Koruma Sınıfı: Depolama ve taşıma için IP66, NEMA 4X IP67
Tedarik baskısı: 1,4-8 bar / 20-116 psi
Temel bilgiler
Menşe yeri: Çin
Marka adı: Neles/Valmet
Model numarası: NDX
Belge: NELES-NDX.pdf
Ödeme & teslimat koşulları
Ambalaj bilgileri: Karton + ahşap sandık + koruyucu ambalaj
Teslim süresi: 65 gün
Ödeme koşulları: T/T
Yetenek temini: Yılda 500 adet
Ürün Açıklaması
Product Overview

The NDX Fieldbus version offers fully digital communication via FOUNDATION Fieldbus, eliminating the need for separate analog feedback modules. Certified ITK 6.5.0, it provides advanced distributed control blocks (AO, AI, PID, etc.) and firmware download capability.

Key Features
  • Bus-powered (9–32 VDC, 17 mA)
  • Function blocks: AO 10 ms, PID 15 ms execution
  • Back-up LAS functionality
  • Input selector & output splitter blocks for advanced control
  • Same premium diagnostics and LUI as HART version
  • Open architecture with FDT/EDD multi-vendor support
Technical Specifications
  • Current consumption: 17 mA (19 mA fault)
  • Execution times: AO/AI/DO/DI 10 ms, PID 15 ms
  • Travel range identical to HART version
  • Temperature range: –40…+85 °C
  • Approvals: ATEX/IECEx FISCO ia/ib/ic, Ex db versions
Applications

Ideal for large FOUNDATION Fieldbus plants requiring distributed control, reduced wiring, and online diagnostics without additional hardware.

Frequently Asked Questions
Q: Do I need extra modules for position feedback?
A: No – position is transmitted digitally over the fieldbus.
Q: Can I perform firmware updates in the field?
A: Yes – built-in firmware download feature.
Q: Is LAS backup supported?
A: Yes – for uninterrupted control.
Contact Us

Phone/WeChat/WhatsApp: +8613916209596

Email: svetama@gbsxj.com

Related Products
  • Neles globe valves
  • B-series pneumatic actuators
  • Neles Valve Manager software
  • NDX HART version.
