Özellikleri

Teknik Özellikler

Tip: Kollu Düzenleme Vanası

Boyut: 1-1/2" ~ 20"

Basınç Değeri: ANSI Sınıfı 150 ~ 2500

Gövde Malzemesi: Karbon çelik, paslanmaz çelik, alaşım çelik, dubleks çelik

Döşeme Malzemesi: Paslanmaz çelik, alaşım çelik, dubleks çelik

Bağlantı: ISA S75.03 (ANSI Sınıfı 150~600), ISA S75.16 (ANSI Sınıfı 900~2500)

Kaput Tipi: Standart, genişletilmiş, uzun, düşük sıcaklık

Mühür tipi: FF, RF, RTJ, LF, BW

Akış özelliği: Eşit yüzde, doğrusal, hızlı açma

Menzillenebilirlik: 50:1

Vurgulamak:

sleeve regulating valve with KOSO EP800 positioner

pneumatic control valve with PRF300 filter regulator

NEWAY CSC series regulating valve

Temel bilgiler

Ödeme & teslimat koşulları

Ambalaj bilgileri: karton/tahta sandık ambalajı

Teslim süresi: 6-8 hafta

Ödeme koşulları: T/T

Yetenek temini: Yılda 800 set

Fotoğraf Galerisi

NEWAY CSC Series Sleeve Regulating Valve with KOSO EP800 Positioner and PRF300 Filter Regulator

Ürün Açıklaması

NEWAY CSC Series Sleeve Regulating Valve with KOSO EP800 Positioner and PRF300 Filter Regulator

Product Overview

The NEWAY CSC Series Sleeve Regulating Valve, integrated with KOSO EP800 Valve Positioner and PRF300 Filter Regulator, is a high-performance industrial control assembly. It delivers precise flow regulation, stable operation, and reliable performance, making it ideal for fluid control in demanding industrial processes such as petrochemical, power generation, and oil & gas.

Features

Pressure-balanced sleeve design for reduced operating torque

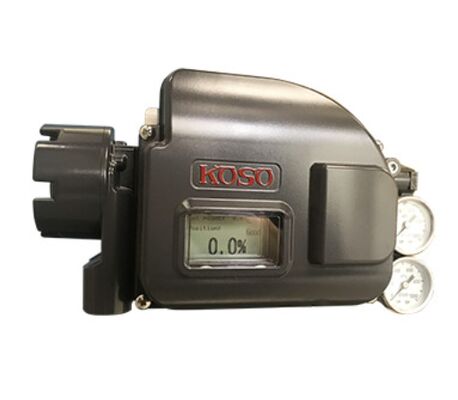

KOSO EP800 positioner ensures accurate positioning and quick response
PRF300 filter regulator provides clean, stable air supply for optimal performance
Wide range of body and trim materials for corrosion and high-temperature resistance
Excellent sealing performance to prevent leakage and ensure operational safety
Adjustable flow characteristics to meet diverse process requirements
Compact structure for easy installation, calibration, and maintenance
High rangeability (50:1) for precise control across varying flow rates
Compatible with various industrial control systems for flexible integration
Long service life and durability in harsh working environments

Technical Specifications

Valve Series	NEWAY CSC Series
Valve Type	Sleeve Regulating Valve
Positioner Model	KOSO EP800
Filter Regulator Model	PRF300
Valve Size	1-1/2" ~ 20"
Pressure Rating	ANSI Class 150 ~ 2500
Body Material	Carbon steel, stainless steel, alloy steel, duplex steel
Trim Material	Stainless steel, alloy steel, duplex steel
Temperature Range	-196°C ~ 538°C
Flow Characteristics	Equal percentage, linear, quick open
Rangeability	50:1
Leakage Class	FCI 70-2 IV, V, VI (soft seal)
Positioner Input Signal	4-20mA DC
Air Supply	1.4 ~ 7.0 bar (20 ~ 100 psi)
Design Standard	IEC60534

Applications

Thermal power plants and boiler systems
Petroleum refining and oil & gas processing
Petrochemical and chemical engineering
Metallurgical and steel manufacturing
Pharmaceutical and food processing
Water treatment and wastewater purification
Industrial process control and pipeline systems

FAQ

Q: What is the function of the KOSO EP800 positioner?

A: It ensures accurate valve positioning and provides real-time feedback for stable process control.

Q: What does the PRF300 filter regulator do?

A: It filters air impurities and stabilizes air pressure to protect the positioner and valve.

Q: Can this valve be used in high-temperature environments?

A: Yes, it operates stably in temperatures ranging from -196°C to 538°C.

Q: What material options are available for the valve body?

A: Carbon steel, stainless steel, alloy steel, and duplex steel are available.

Q: Is the valve easy to maintain?

A: Yes, its compact structure allows for easy installation, calibration, and maintenance.
