IMI STI PT Series SR/CCK Valve Positioner Double Single Acting for Butterfly Plug Ball Valves

1
MOQ
3800-3500$ per set
fiyat
IMI STI PT Series SR/CCK Valve Positioner Double Single Acting for Butterfly Plug Ball Valves
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Puanlar ve İncelemeler Fiyat talebi
Özellikleri
Teknik Özellikler
Giriş sinyali: 3-15 psi ve 4-20 mA
Çalışma Sıcaklığı: -20°C ila 70°C
Tedarik baskısı: 2,5-7 bar
Ürün adı: 400 kPa'da 1,02 Nm³/saat
CV Maksimum Düşük Akış: 0,34 (Giriş ve Çıkış 1/4")
Besleme Bağlantısı: 1/4" ND
Elektrik bağlantısı: 1/2" NPTF
Histerezis: Tam vuruşun %0,5'i
Doğrusallık: Tam vuruşun %1'i
Hassasiyet: Sinyal aralığının %0,25'i
Vurgulamak:

IMI STI PT Series valve positioner

,

double acting valve positioner for butterfly valves

,

single acting valve positioner for ball valves
Temel bilgiler
Menşe yeri: İtalya
Marka adı: IMI STI
Model numarası: SR/CCK
Belge: SR CCK.pdf
Ödeme & teslimat koşulları
Ambalaj bilgileri: karton/tahta sandık ambalajı
Teslim süresi: 6-8 hafta
Ödeme koşulları: T/T
Yetenek temini: Yılda 800 set
Ürün Açıklaması

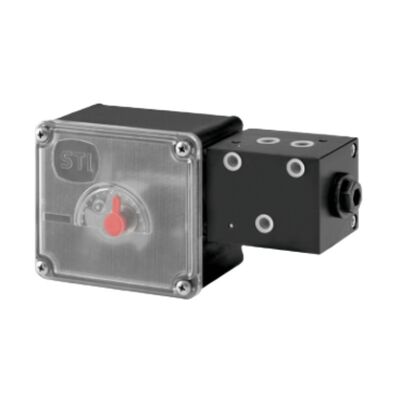

The IMI STI PT Series SR/CCK Valve Positioner

The IMI STI PT Series SR/CCK Valve Positioner is a robust, high-reliability pneumatic positioner engineered for precise proportional control in industrial valve applications. Part of IMI STI's trusted PT Series, the SR/CCK delivers exceptional performance in demanding environments, ensuring accurate valve positioning for enhanced process control and operational efficiency.

Product Overview

The SR/CCK is specifically designed for proportional quarter-turn operation, making it ideal for actuating butterfly, plug, ball valves, and similar rotary devices. It can also be adapted for linear actuators using a dedicated bracket. Positioned in the control circuit between the air filter regulator and the actuator, this heavy-duty positioner operates on the balanced-forces principle, with air distribution managed by a reliable spool valve. Available in double-acting configuration (convertible to single-acting), it supports a wide range of actuator strokes through interchangeable linear cams (up to 270°). Built for harsh industrial conditions, the SR/CCK offers outstanding durability, high repeatability, and suitability for hazardous areas in sectors like oil and gas, refining, chemical processing, power generation, and metal production.

Features
  • Heavy-duty metallic construction for maximum reliability in aggressive environments
  • Proportional control for rotary (quarter-turn) and adaptable linear actuators
  • Double-acting design with single-acting capability
  • Interchangeable linear cams (up to 270°) for flexible stroke adjustment; custom profiles available
  • Balanced-forces spool valve system for precise air distribution and fast response
  • Split-range signal support for multi-actuator sequencing
  • Optional full stainless steel spool valve for enhanced corrosion resistance
  • High hysteresis and linearity performance
  • Outdoor installation-ready with robust protection
Technical Specifications
Input Signal:
3-15 psi (0.2-1 bar) pneumatic; split-range options available
Supply Pressure:
2-10 bar
Accuracy (with linear cam):
±1% of full range
Hysteresis:
Typically low (around 0.5-1% depending on configuration)
Linearity:
±1% of full stroke
Sensitivity:
High response to signal changes
Air Consumption:
Efficient design for reduced operational costs
Operating Temperature:
Standard -20°C to +70°C (extended ranges on request)
Cam Operating Angle:
Up to 270°
Connections:
Pneumatic ports ND 1/4"; electrical (for I/P variants) ND 1/2" NPTF
Enclosure:
Metallic case, heavy-duty for hazardous and outdoor use
Additional Options:
Intrinsically safe/explosion-proof versions, pressure gauges
Applications
  • Oil and gas production and refining
  • Chemical and petrochemical plants
  • Power generation facilities
  • Metal processing and mining operations
  • Any automated system requiring reliable quarter-turn or linear valve actuation in harsh, hazardous, or high-demand environments
FAQ
What types of valves is the SR/CCK best suited for?
It is optimized for quarter-turn valves like butterfly, ball, and plug valves, with adaptation possible for linear types via brackets.
Can it be used in hazardous areas?
Yes, its heavy-duty design supports installation in potentially explosive atmospheres, with optional certifications available.
Is it compatible with single-acting actuators?
Absolutely—the double-acting unit can be configured for single-acting operation.
How flexible is the cam system?
Multiple linear cams allow adjustment for different actuator strokes up to 270°, with custom profiles on request.
What maintenance is required?
Minimal due to its robust spool-based design; routine checks on air supply and calibration ensure long-term performance.
