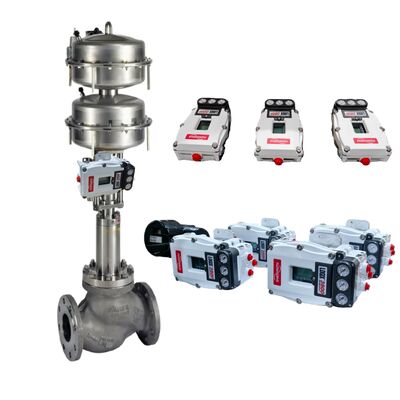

FLOWSERVE MARK ONE Linear Globe Angle Control Valve Spring Cylinder Valve Pneumatic Actuator

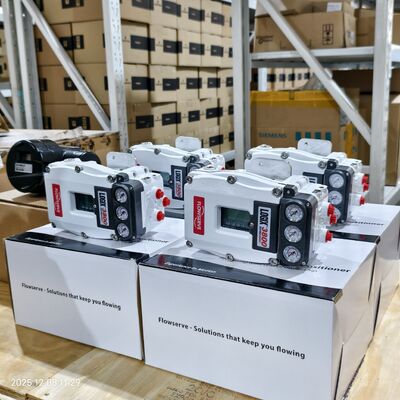

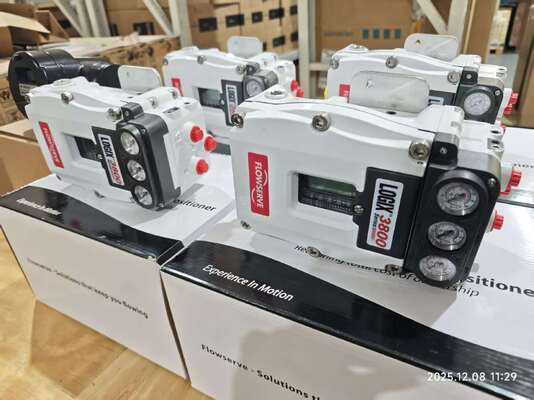

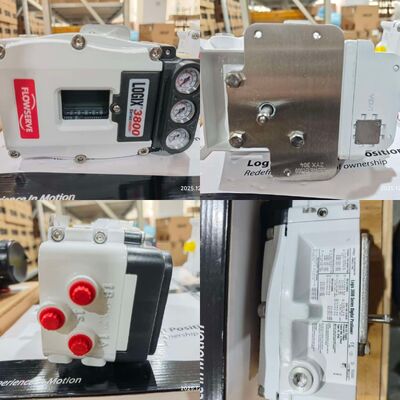

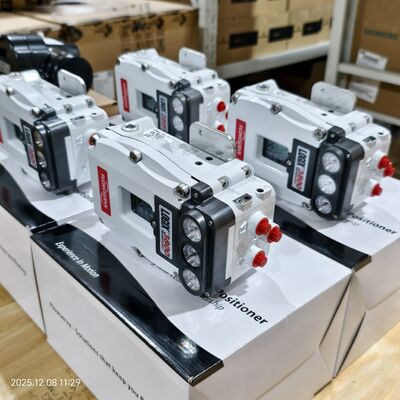

The Flowserve Logix 3800 Series 3821 Valve Positioner is a high-performance digital valve positioner engineered for precise control of pneumatic control valves in demanding industrial automation systems. As part of the Logix 3800 family, the 3821 model combines advanced microprocessor control with robust mechanical hardware to deliver fast, accurate valve positioning and reliable long-term operation.

The 3821 positioner supports both linear and rotary actuators and is compatible with a range of control valve assemblies. It offers intelligent diagnostics, configuration flexibility, and seamless integration with control systems using standard analog and digital communication protocols. The Logix 3800 3821 is ideal for use in oil and gas, petrochemical, power generation, water treatment, and general process control environments.

• High-performance digital valve positioning for pneumatic actuators
• Fast response and stable control under varying process conditions
• Supports 4–20 mA control signal with digital feedback
• HART communication support for remote configuration and diagnostics
• Advanced diagnostic functions for valve health and loop performance
• Low air consumption for efficient operation
• Compatible with linear and rotary control valves
• Robust, industrial-grade housing for demanding environments
• Easy calibration and auto-tuning for rapid commissioning
• Supports condition-based maintenance strategies

• Control valve automation in oil and gas production and refining
• Chemical and petrochemical process monitoring
• Flow, level, and pressure control in power plants
• Water and wastewater treatment systems
• General industrial automation involving pneumatic control valves
• Retrofit applications to replace analog or older positioners

• Improves valve positioning accuracy and repeatability
• Enhances process stability and control system performance
• Reduces unplanned downtime with diagnostic insight
• Supports predictive maintenance with built-in performance monitoring
• Fast commissioning with auto-setup and configuration tools
• Reliable operation in harsh industrial conditions

The Flowserve Logix 3800 Series 3821 valve positioner receives a 4–20 mA control signal from the process control system.
An internal microprocessor compares this input against valve position feedback and continuously adjusts the pneumatic output to the actuator to ensure precise valve movement. Digital communication via HART allows remote configuration, monitoring of diagnostic data, and health status reporting for proactive maintenance.

• Mount the positioner to the actuator using the NAMUR mounting interface
• Connect clean, dry instrument air to the actuator ports
• Wire the 4–20 mA control signal and HART communications as required
• Perform auto-calibration and configure travel limits
• Verify proper valve response under process conditions

Is the 3821 compatible with different actuator types?

Yes. It supports both linear and rotary pneumatic actuators.

Does the Logix 3821 support remote diagnostics?

Yes. HART communication enables remote monitoring and diagnostic data retrieval.

Can it be used for retrofit projects?

Yes. The 3821 is often used to upgrade older analog positioners to modern digital control.

Is the positioner suitable for hazardous areas?

Certified models are available depending on configuration and region.

How does the 3821 improve maintenance?

Advanced diagnostics such as friction detection and performance trending enable predictive maintenance.
