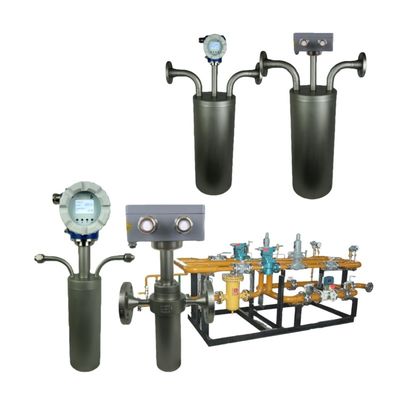

Bopp Reuther Liquid Density Meter DIMF 1.3 DIMF 2.0 DIMF 2.1 Density and Concentration Meter Density Measuring Device

The Bopp & Reuther Density Concentration Meter is an advanced inline analytical instrument that delivers real-time density and concentration data for process optimization and quality assurance. Based on the proven oscillating U-tube principle, it achieves exceptional ±0.0001 g/cm³ accuracy across a wide temperature and pressure range. With integrated temperature compensation, stainless steel wetted parts, and digital communication protocols, the meter enables predictive process control in demanding environments. Ideal for industries requiring precise fluid characterization, it supports seamless integration into DCS and SCADA systems while minimizing maintenance through its non-intrusive design.

• Advanced Accuracy: ±0.0001 g/cm³ with ±0.00005 g/cm³ repeatability.
• Oscillating U-Tube Sensor: Direct inline measurement without sampling.
• Integrated Temperature Compensation: Ensures accuracy across -40°C to +200°C.
• High-Pressure Design: Rated up to 100 bar for process lines.
• Digital Connectivity: HART, Profibus, 4-20 mA outputs.
• Corrosion-Resistant Materials: Full stainless steel construction.
• Explosion-Proof Certification: ATEX, IECEx for hazardous zones.
• User-Friendly Interface: Local display and remote configuration.

• Pharmaceutical Manufacturing: API concentration verification.
• Beverage Production: Brix and extract monitoring.
• Chemical Blending: Real-time mixture density control.
• Oil & Gas: Custody transfer density measurement.
• Battery Production: Electrolyte density analytics.

By correlating oscillation frequency to fluid mass in the tube.

Yes, up to 20,000 mPa·s with full accuracy.

No, factory calibration lasts years; only periodic verification needed.

Yes, via HART, Profibus, and 4-20 mA.

Yes, fully cleanable with sanitary options available.

For more information about the Bopp & Reuther Density Concentration Meter, pricing, or to request a demo, contact our team:

• Email: edwardzhao@gbsxj.com
• Phone: +8615000725058
• Website: https://www.shgongboshi.com/
