Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine

Temel bilgi
Menşe yeri: Şangay, Çin
Marka adı: KUKA
Fiyat: $44,915.00/Sets >=1 Sets
Ambalaj bilgileri: TEK Endüstriyel Robot KR 20 R1810 Kaynak için 6 Eksenli Robot Kollu 20 kg'lık Anma Yükü Kaynak M
Yetenek temini: Ayda 999 Adet/Adet
Uygulanabilir Endüstriler: Oteller, Konfeksiyon Mağazaları, İnşaat Malzemesi Mağazaları, Makine Tamirhaneleri, Üretim Tesisi, Y Showroom Konumu: Hiçbiri
Video çıkışı denetimi: Tedarik edilen Makine Test Raporu: Tedarik edilen
Pazarlama Türü: Yeni Ürün 2020 Çekirdek bileşenlerin garantisi: 1 yıl
Ana bileşenler: PLC Koşul: Yeni
Ağırlık: 250 kg, yakl. 250 kg Güç: 380V
Garanti: 1 yıl Ağırlık (kg): 250 KG
Maksimum erişim: 1813 mm Maksimum yük: 23,9 kg
Anma yükü: 20Kg Poz tekrarlanabilirliği (ISO 9283): ± 0,04 mm
Eksen sayısı: 6 ayak izi: 430,5 mm x 370 mm
Çalışma sırasında ortam sıcaklığı: 5 °C ila 45 °C (278 K ila 318 K) kontrolör: KR C4
kolye öğretmek: KUKA akıllı PAD Liman: Şanghay

Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine

The Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine is designed for a rated payload of 20 kg in order to optimize the dynamic performance of the robot. With reduced load center distances, higher loads up to the maximum payload may be used. The specific load case must be verified using KUKA.Load.
Product Description
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 0
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 1
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 2
Specification
item
value
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Name
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2020
Warranty of core components
1 Year
Core Components
PLC
Condition
New
Place of Origin
China
Shanghai
Brand Name
KUKA
Weight
250kg
Power
380v
Warranty
1 Year
Weight (KG)
250kg

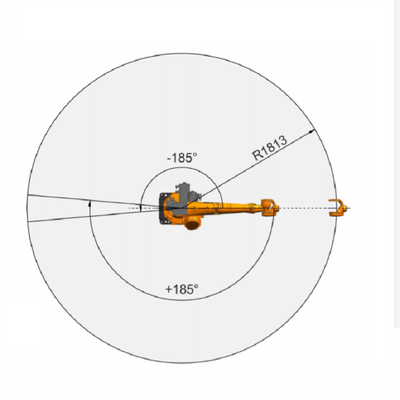

Maximum reach
1813 mm
Maximum payload
23.9 kg
Rated payload
20 kg
Pose repeatability (ISO 9283)
± 0.04 mm
Number of axes
6
Footprint
430.5 mm x 370 mm
Weight
approx. 250 kg
Ambient temperature during operation
5 °C to 45 °C (278 K to 318 K)
Controller
KR C4
Teach pendant
KUKA smartPAD
Packing & Delivery
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 3
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 4
ONE Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine packing with fumigation wooden frame, WG:250KG
Company Profile
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 5
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 6
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 7
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 8
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 9
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 10
Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Robot/ Robot Positioner/ Robot Track/ Robot Gripper/ Robot Control System

4. why should you buy from us not from other suppliers?
1: We are with ABB,KUKA,FANUC,YASKAWA agentand many other brands agent for years. 2: Majority of our engineer from KUKA, ABB. The engineering manager worked in ABB company for 19 years. 3: We can offer majority of industrial controlled component.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 11
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 12
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 13
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 14
Production Name
Welding Robot
Power supply
20 ~ 25V
Protection rating
IP54
Weight
1.25kg

FAQ


Q.How Long will You Need before Delivery? A:We have many common models in stock, so that wecan deliver the goods very soon(less than 3 days).

Q.What is Your Payment Term?
A:Normally T/T 30% in advance, balance to be paidbefore delivery, We also support the trade assurance,OlA.
Q:What is Trade Assurance? A:Trade Assurance is a free service by Alibaba.comthat's designed to help create trust between buyers andsuppliers.Trade Assurance helps buyers in the event ofshipping and quality-related dispute.
Q:Does Trade Assurance Charge Fees? A:No.Trade Assurance is free for both buyers andsuppliers.
Q:What Kind of Trade Terms Can You Do?
A:EX-WORKS,FOB,CFR,CIF,etc.
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 15
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 16
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 17
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 18
