Robot palletizer material handling and removal robot CX165L industrial robotic arm manipulator for Kawasaki

Temel bilgi
Menşe yeri: Çin
Marka adı: KAWASAKI
Sertifika: CE
Model numarası: CX165L
Min sipariş miktarı: 1 Set
Fiyat: USD 29629/Set
Ambalaj bilgileri: Bir robot paletleme malzemesi taşıma ve sökme robotu CX165L fümigasyon ahşap çerçeveli Kawasaki amba
Teslim süresi: mevduat 7 işgünü
Ödeme koşulları: T/T, l/c, Western Union
Yetenek temini: 50 setleri / ay
Ürün adı: Robot paletleyici malzeme taşıma ve kaldırma robot Kawasaki için robot CX165L endüstriyel robotik ko Türü: Eklemli robot
Modeli: CX165L-IBC02 eksen: 6
Yükü: 165kg ulaşmak: <html> <head> <meta name="robots" content="noarchive" /> <meta name="googlebot" content="nosnippe
Kütle: 870kg Montaj: kat
Renk: Munsell 10GY9 / 1 eşdeğeri Yükleme: Zemin montajı
Vurgulamak:

yüksek hızlı robot kolu

,

makine öğrenimi robotik kolu

Robot palletizer material handling and removal robot CX165L

industrial robotic arm manipulator for Kawasaki



Specification



Product Description

CX165L SPECIFICATIONS
Type Articulated Robot
Degrees of Freedom (axes) 6
Payload (kg) 165
Max. Reach (mm) 2,699
Positional Repeatability (mm) ✽1 ±0.06
Motion Range (°) Arm Rotation (JT1) ±160
Arm Out-in (JT2) +80 - −60
Arm Up-down (JT3) +95 - −75
Wrist Swivel (JT4) ±210
Wrist Bend (JT5) ±120
Wrist Twist (JT6) ±360
Max. Speed (°/s) Arm Rotation (JT1) 130
Arm Out-in (JT2) 125
Arm Up-down (JT3) 125
Wrist Swivel (JT4) 180
Wrist Bend (JT5) 180
Wrist Twist (JT6) 280
Allowable Moment (N•m) Wrist Swivel (JT4) 952
Wrist Bend (JT5) 952
Wrist Twist (JT6) 550
Allowable Moment of Inertia (kg•m2) Wrist Swivel (JT4) 99
Wrist Bend (JT5) 99
Wrist Twist (JT6) 49.5
Mass (kg) 870
Mounting Floor
Installation Environment Ambient Temperature (°C) 0 - 45
Relative Humidity (%) 35 - 85 (No dew, nor frost allowed)
Controller / Power Requirements (kVA) America E02 / 7.5
Europe E02 / 7.5
Japan&Asia E02 / 7.5

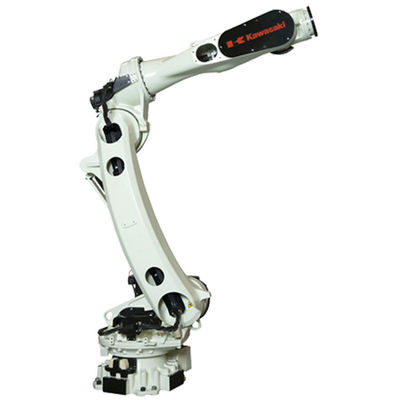

CX165L Robot

NEW GENERAL-PURPOSE LARGE PAYLOAD ROBOT

The CX165L robot has a payload capacity of 165 kg and is the mid-range model of the general-purpose CX series robots. The CX robots offer a large payload capacity and feature a robust, yet lightweight, hollow arm and a new smaller sized universal controller. The series high-speed and slim arm design was developed to suit a wide range of applications, from material handling to spot welding.

Robot palletizer material handling and removal robot CX165L industrial robotic arm manipulator for Kawasaki 0

Robot palletizer material handling and removal robot CX165L industrial robotic arm manipulator for Kawasaki 1

Robot palletizer material handling and removal robot CX165L industrial robotic arm manipulator for Kawasaki 2

Robot palletizer material handling and removal robot CX165L industrial robotic arm manipulator for Kawasaki 3









Product Information

1
Our Service
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance



4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.



5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.
